2026  Dorsey Trailer  45' Dorsey Steel Giant Drop Deck w/ Ramp Kit  - 2080-CIN

Brand New 2026 45' Dorsey Steel Giant Drop Deck Trailer with ramp kit!

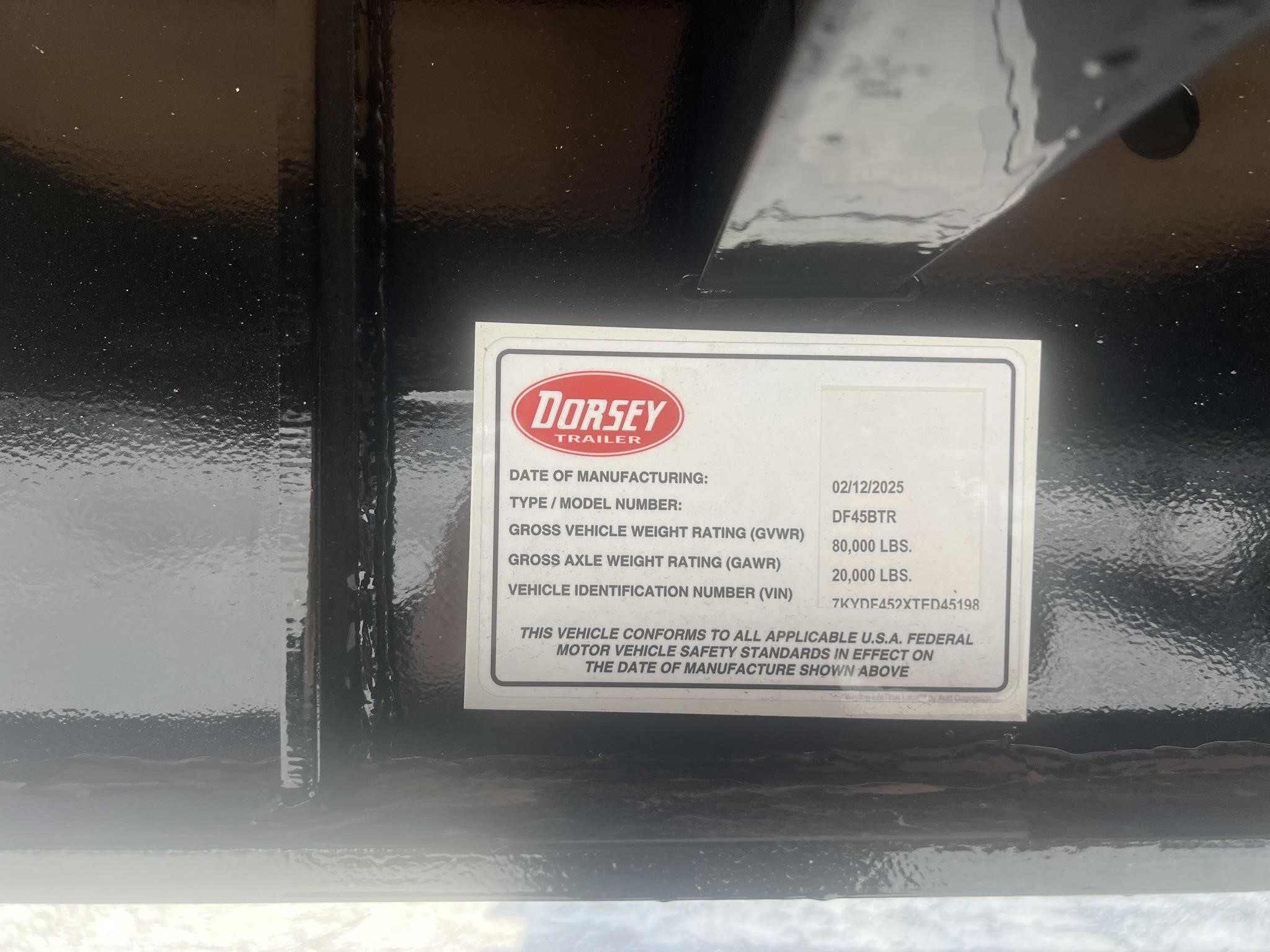

• Capacity: Standard Beam Package -80,000lbs GVWR (60,000lbs in 10’)
• Dimensions: 45’  x 102” Wide
• Base Weight: 11,125 pounds
• Top Deck: 10’ 6” length, 59” height
• Lower  Deck: 34’ 6” length including beaver tail
• Lower Deck Height: 41-3/4"
• King Pin Setting: 24" –Tapered pickup plate
• Upper Coupler Plate: ¼”
• Upper Coupler Height: 48"
• Front Skirt: Steel front with four bulkhead pocket
• Rear Skirt: Steel
• Main Frame: 26” PreCamb Beam, 130K Tru-Strength Flanges- Limited Lifetime Warranty
• Side Rails: 6”-Channel Iron 6.5# per ft.
• Top Deck Floor Sills: $” Steel I-Beam – 18” O.C.
• Lower Deck Floor Sills: 3” Steel I-Beam 12” O.C. HD pkg
• Neck Transition Ramps:  *None*
• Coil Package: Single Could Placement – 5 Extra Stud sills- Ctr on trailer
• Rear Beavertail 52” -32 degree transition - Steel w/traction bars

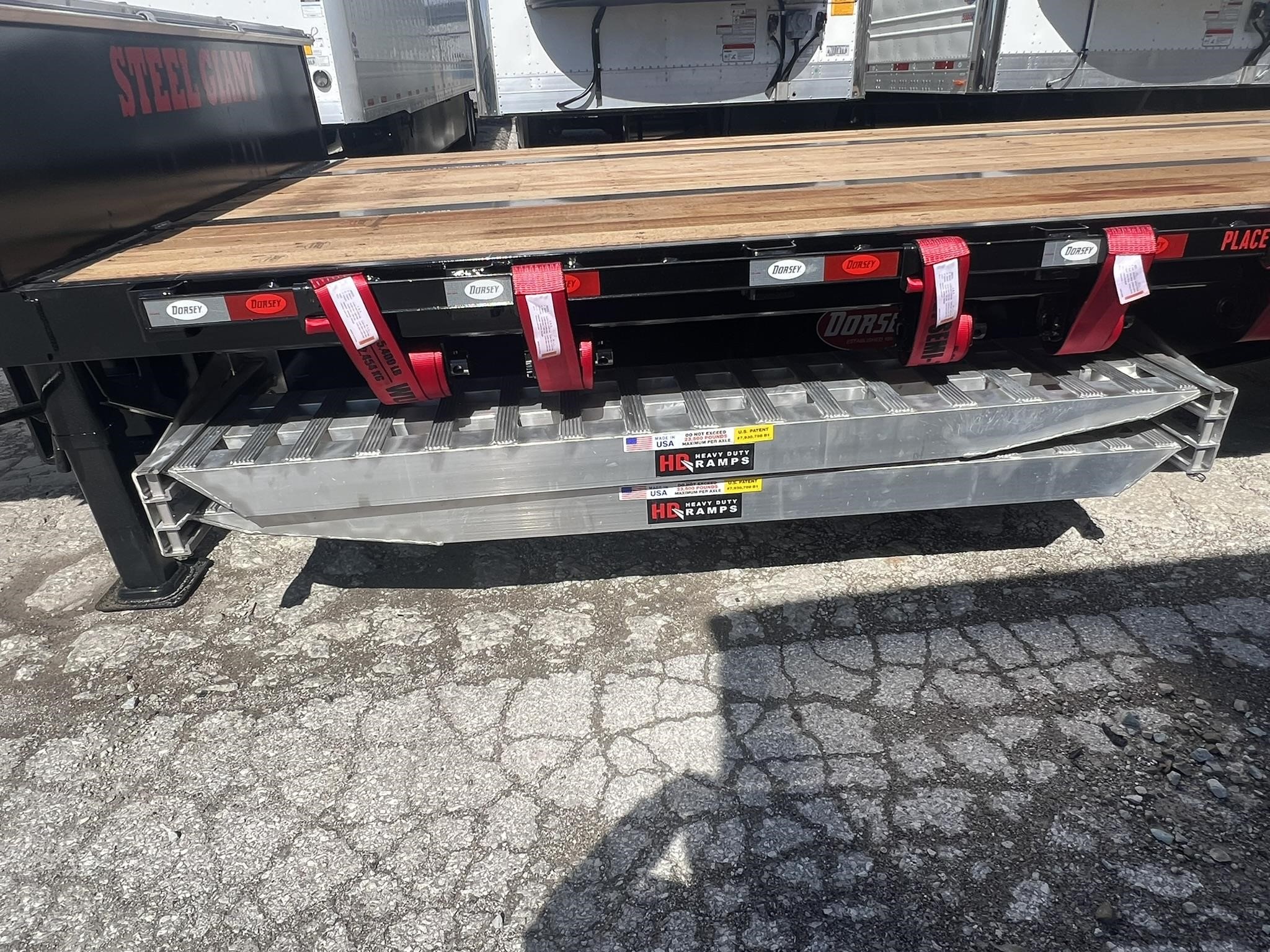

• Rear Loading Ramps: Steel self cleaning – full width spring assist, Goliath series ramps
• Winches: 15 C-channel
• Winch Track:  C Channel steel-welded underneath R/S
• Tie Bar: Curb Side – full length 3/8” x 2”
• Straps: 15-4” x 30’ w/flat end hook
• Mudflaps: Anti-sail behind all axles
• Stake Pockets: 24” O.C. sides, 4 on front
• Pipe Spools: Double pipe spools
• Rub Band: Steel 3/8” x2.5” steel w/recessed DOT tape
• Dock Bumpers: Rubber inboard
• Tire Carrier: In front of main beams b/w landing gear
• Lights: Grote Ultra Blue sealed wiring harness.  2 micros per side and mid turn 3-3-3 rear lights
• Paint: Black PPG Epoxy primer and acrylic polyurethane
• Decal Package: Standard Dorsey logo kit
• Landing Gear: Jost A500 2-Speed
• Suspension: Hendrickson Intraax 23K, fixed – 10’ 2” Spread
• Suspension Location: Set at rearmost position
• Axles: 2 - 23K Capacity, Type 30 Chambers – Auto Slacks
• Wheels: Disc, hub piloted 22.5
• Tires: Firestone 255/70R 22.5
• Dump Valve: Manual & electric – wired through 7 way,  Dumps Rear Axle
• ABS Brakes: Wabco 2S/1M
• Parking Brakes: All axles
• Ramp Kit: with skid seats and storage on side of trailer

We have many great finance options available. Please contact us for more details.
