We are a Marmon/Berkshire Hathaway business 100% focused on serving customers making their living using lowbed, extendable or hydraulic tail trailers. Our innovative solutions always begin with the customer.

We listen, clarify, understand and then focus our industry experts and resources to finding a better way.

About us img
What we do Img

What we do

We serve our customers with in-house research, engineering/product design and durability testing: in the lab and the field. Our customers know we stand behind everything we sell. The solutions we deliver make businesses more efficient and our customers more profitable. We would like to do the same for you … That’s why we’re here. Headquarters and manufacturing facilities are located in Springville, Alabama.

VIEW FONTAINE INVENTORY

Quality

Fontaine offers a broad range of lowbed (lowboy) trailers matched to handle the special requirements of your industry.

Innovative Trailers That

Get The Job Done

Explore the Fontaine lineup

Workhorse

Economical. Dependable A true WORKHORSE that gets the job done! Trailer img

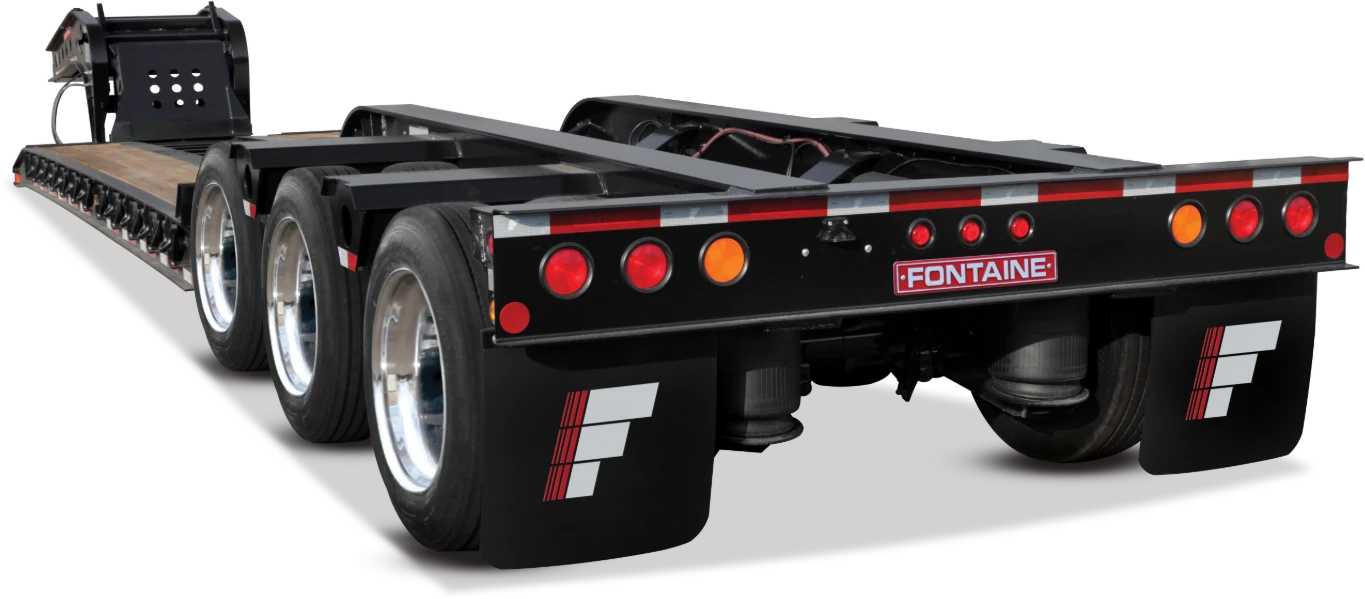

Workhorse lowbed Trailers

Hydraulic detachable gooseneck 3 and 4 axle close couple trailers for the construction industry

  • 50 to 55 ton capacities
  • Multiple deck lengths and designs
  • Flip axle ready
  • Air ride bogies
Standard Features
  • 7-Position gooseneck ride height
  • Toolbox (front of deck)
  • 8′ 6″ wide deck with outriggers
  • Fixed tridem air ride bogie
  • 54.5″ bogie spread
  • Air lift 3rd axle
  • 7-Position bogie ride height adjustment
Options
  • Front flip ramps (Standard on 55LCC)
  • ABS (standard on 50)
  • Flip axle (not available on 50)
  • 60″ bogie spread
  • Load bearing wheel covers
  • Load scales
  • Tire inflation systems, paint, tires, wheels & more

Magnitude

Build to handle the special requirements of the construction industry Trailer img
Magnitude lowbed Trailers

Hydraulic detachable gooseneck trailers, available with fixed or modular deck, all spread axle capable trailers for the construction industry

  • 55 to 80 ton capacities
  • Multiple deck lengths and designs
  • Flip neck ready
  • Flip axle ready
  • Fixed and modular bogies
  • Air ride bogies
Standard Features
  • 7-Position gooseneck ride height
  • Toolbox (front of deck)
  • 8′ 6″ deck width with outriggers
  • Recessed deck crossmembers
  • Tridem air ride bogie
  • 54.5″ bogie spread (55 ton)
  • 60″ bogie spread (60HD & above)
  • FLD, DSR or BMD deck styles
  • Air lift 3rd axle
  • 7-Position bogie ride height adjustment
Options
  • Dual kingpin
  • 9′ deck width with outriggers
  • Flip ramps, hammer plate
  • ABS
  • 60″ bogie spread
  • Flip box, flip axle(s) compatible
  • Nitrogen Spreader (EQ1, 2 or 3)
  • Load scales, tire inflation systems, paint, tires, wheels & more

Renegade

Build to handle the special requirements of the construction industry Trailer img
Renegade lowbed Trailers

Fontaine offers a full line of rugged Specialized trailers for the commercial market. Choose from:

  • 30 to 40 ton capacities
  • Extendable trailers
  • Choice of mechanical and hydraulic necks
  • Trailers for Canadian market
Standard Features
  • 54.5″ axle spread (18, N18, 20, N20, X20, XN20)
  • 60″ axle spread (20C, X20C)
  • 50″ axle spread (14, N14, N12)
  • Outriggers (except 14, N14, N12)
  • Tandem air ride, fixed bogie
  • Amber strobes / battery backup
  • 255 tires
Options
  • Gooseneck toolbox – riser area (all Mechanical models)
  • Mini-boom trough
  • Disc brakes (18, N18, 20, N20, X20, XN20)
  • Flip box compatible – 36″ (20, 20C, X20, X20C)
  • Flip axle compatible (all models)
  • Tire inflation systems, paint, tires, wheels & more

Xcalibur

Extendable platform trailer for the “long haul” Trailer img
Xcalibur Extendable Trailers

80,000 lbs. (4880) or 90,000 lbs. (5390) of distributed frame capacity

  • Extends from 48′ to 80′ (4880)
  • Extends from 53′ to 90′ (5390)
  • Your choice of tandem or tridem axles with spring or air ride suspension
  • All models CAL legal
Standard Features
  • Stop positions every 5′ with air-operated pins for greater convenience
  • Steel I-Beam crossmembers at 12″ centers for greater strength
  • Structural steel siderails and steel front & rear skirt for heavy-duty performance
Options
  • Steel bulkhead
  • Dust shields
  • Wheel and tire choices
  • Winch straps
  • Hubodometer
  • Tool boxes

Traverse HT Industry

Load and go. There´s nothing like the TraverseHT Hydraulic tail Trailers

The Fontaine Traverse HT is a real game changer for the hydraulic tail trailer industry. The innovative design is loaded with convenience features that make work easier. The 10.5° ramp angle makes it easy to load low ground clearance equipment. A rugged steel reinforced deck features a clear deck length of more than 38 ft in the travel position and handles 40 tons evenly distributed or 33 tons concentrated in 16 feet

Trailer img

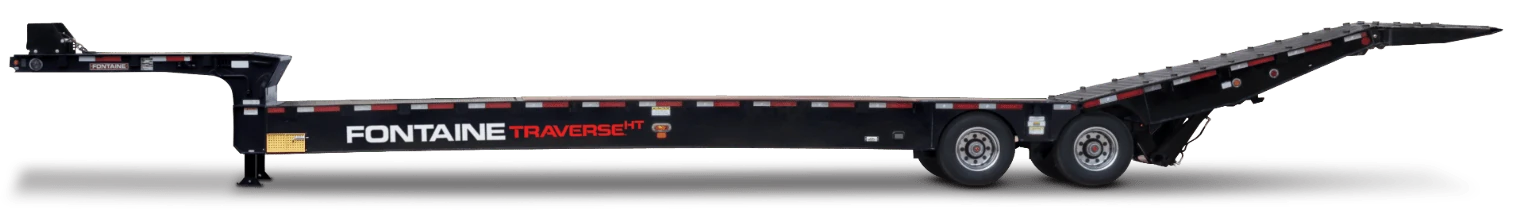

TraverseHT Hydraulic Tail Trailers

The Fontaine Traverse HT is a real game changer for the hydraulic tail trailer industry. The innovative design is loaded with convenience features that make work easier. The 10.5° ramp angle makes it easy to load low ground clearance equipment. A rugged steel reinforced deck features a clear deck length of more than 38 ft in the travel position and handles 40 tons evenly distributed or 33 tons concentrated in 16 feet.

Capacity
  • 40 tons evenly distributed
  • 33 tons in 16″
  • 25 tons in 12″
Standard Features
  • 9′ 10″ gooseneck length
  • 48′ total length
  • 38′ 2″ deck length
  • 35″ loaded deck height
  • 14′ ramp length (10′ main tail / 4′ flip tail)
Options
  • On-board digital scales
  • LED worklights to illuminate deck
  • Non-skid paint on top flanges of deck
  • Aluminum wheels
  • Tire inflation systems, paint, tires, wheels & more
Features
  • Best in class 10.5° load angle
  • Tail lifts 25,000 lbs to loading dock height
  • Heavy-duty 18,000 lbs winch
  • Dual controls (both sides of gooseneck)
  • 4-function remote control
  • Steel I-beam crossmembers on 18″ centers
  • 1 3/8″ apitong wood deck
  • 2-speed landing legs
  • Dual locking tool boxes
  • Traction cleats on ramp for easier loading
  • Amber LED tail strobe lights work off battery if trailer disconnected from tractor
